Description

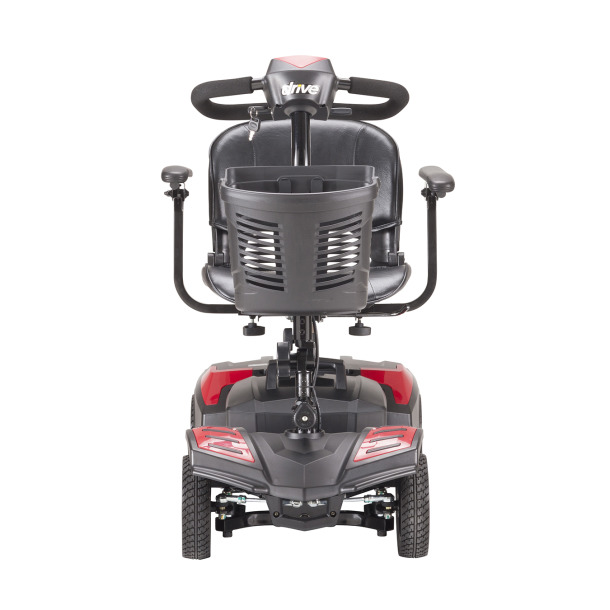

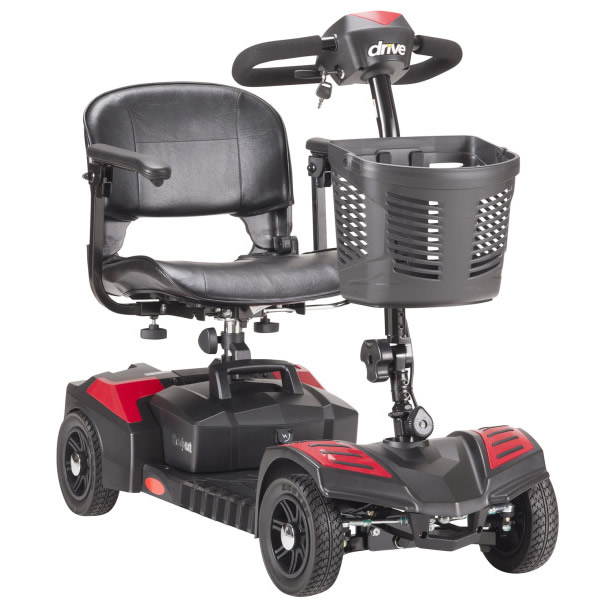

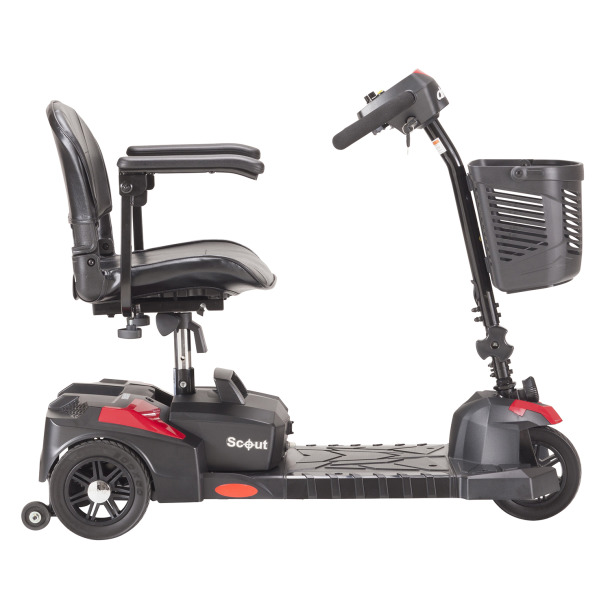

The Drive Scout 4 mobility scooter is a great option for those users that would prefer a piece of mobility equipment that can be dissembled easily and transported into a vehicle.

  • Quick and easy disassembly

    • Color-through color panels hide scuffs and scratches

    • Armrests are padded and adjustable

    • Quick connect batteries

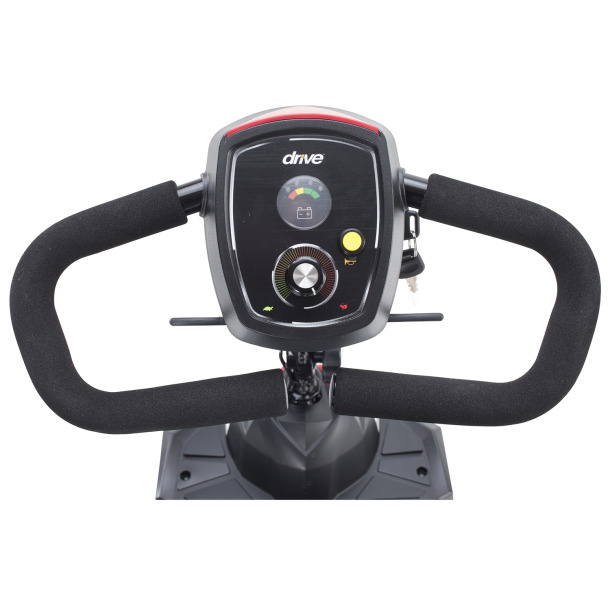

    • Ergonomic throttle control

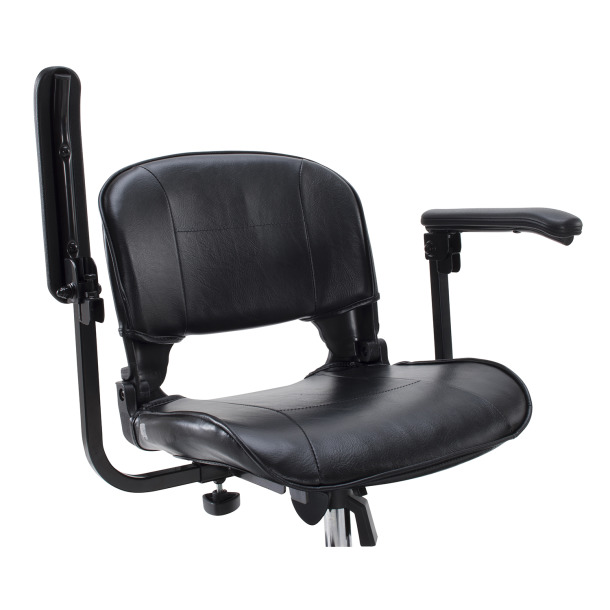

    • Height-adjustable swivel seat with fold-down backrest

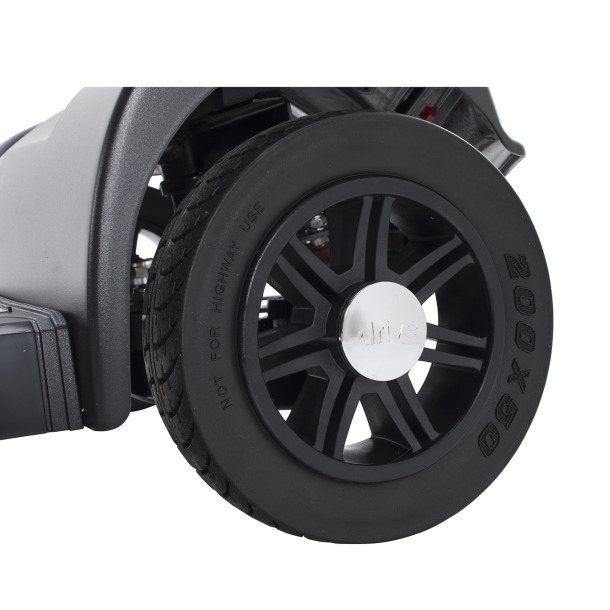

    • Flat-free, non-marking tires

    • Large, plastic carry basket

    • Easy-to-adjust tiller

    • Anti-tip wheels

    • Delta tiller

    • Easy free wheel operation

    • Available with 12AH or 20AH batteries

    • 20AH batteries increase scooter’s maximum range

Dimensions include:

  • Base Weight 58 lbs
  • Batteries (pair) 12V x 12AH, 12V x 20AH (EXT Model Only)
  • Battery Weight (pair) 20 lbs
  • Brakes Electromagnetic
  • Charger 2A Offboard
  • Climbing Angle 6°
  • Controller CTE 45A
  • Dimensions 42.5″ (L) x 21.5″ (W)
  • Floor to Seat Height 17″ – 19″
  • Front Wheels 8″ x 2″ Flat-free
  • Ground Clearance 2.5″
  • HCPCS K0800
  • Heaviest Piece Weight 39 lbs
  • Maximum Range 9 miles (12AH) | 15 miles (20AH)
  • Motor 24V x 270W x 4700 rpm
  • Rear Wheels 8″ x 2″ Flat-free
  • Seat Dimensions 16.5″ (W) x 16″ (D)
  • Seat Weight 16 lbs
  • Top Speed 4.25 mph
  • Total Weight (excl. hand control) 94 lbs
  • Turning Radius 53.75″
